Platform-Dimension Lock for Kiosk Enclosures: What to Freeze Before Modules Change the Cabinet

Editorial Team September 15, 2026

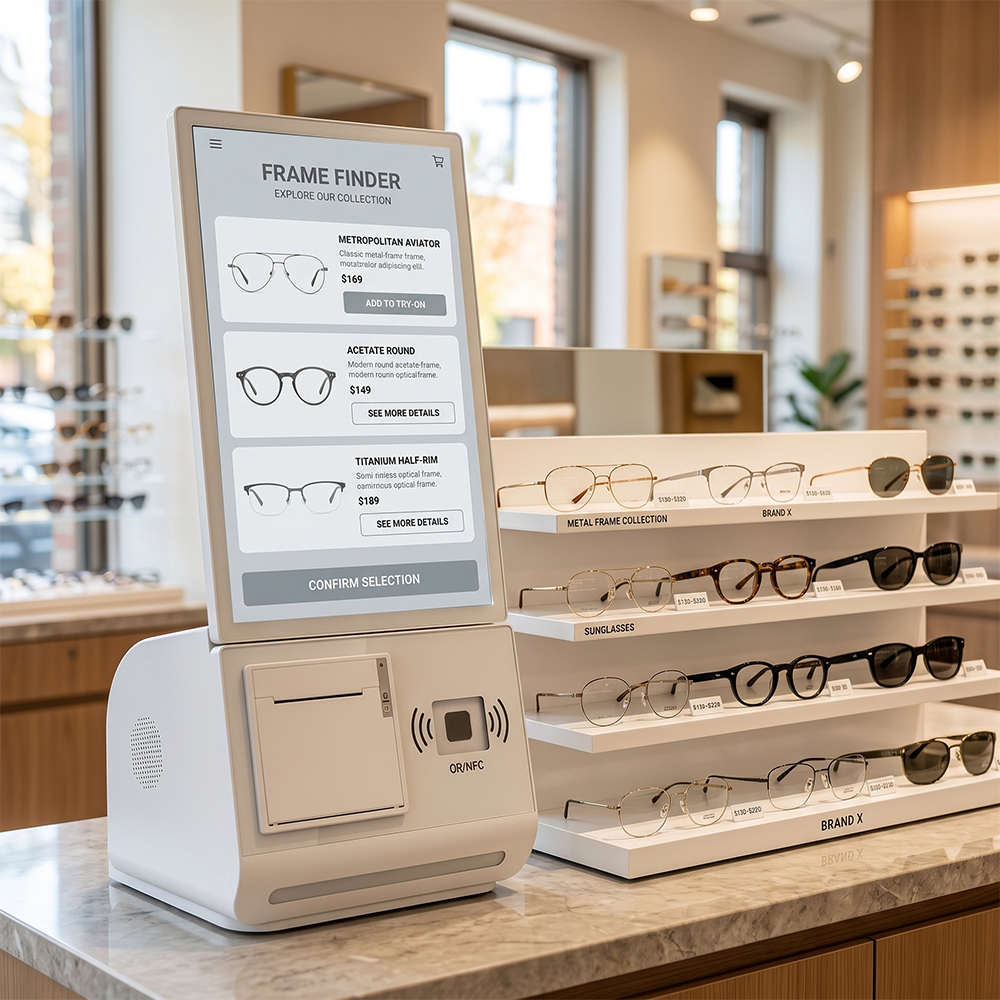

Lock the overall footprint and clearance, screen centre height and rake, counter lip, service-panel swing arc, ADA reach zone, anchor points, and the cutout datum origin when you commit to a 15.6in–21.5in self-service kiosk OEM enclosure platform. Keep internal bay depth, module sled pitch, cable-entry positions, vent field and cash canister envelope provisional. The split is what stops a card reader, printer or cash module from forcing a new cabinet.

Platform-Dimension Lock for Kiosk Enclosures: What to Freeze Before Modules Change the Cabinet

Buyers on restaurant self-ordering kiosks, retail checkout kiosks, hotel self-check-in kiosks, hospital registration kiosks and ticketing kiosks routinely commit to a sheet metal platform before the peripheral list is signed off. Someone on the project has to decide which of those dimensions are commitments and which are still negotiable, and that decision usually gets made late and informally.

This guide gives you a freeze/provisional split you can defend in an internal review, plus change-control rules for swapping kiosk peripheral integration modules after the platform is committed. It sits underneath the site’s existing coverage of the kiosk enclosure form-factor lock, which handles the execution layer once these dimensions are set.

Dimension freeze, defined: at platform commit it means the dimensions quoted to the fabricator for tooling, structural design and compliance review. At tooling release it means the dimensions on the released production drawing. Between those two points, freeze-column values should not move without a documented revision.

Why the Enclosure Freeze Happens Before the Module List Is Final

Sequencing pressure, not preference, drives the order. Sheet metal tooling and powder-coat batch lead times push the enclosure commit ahead of peripheral selection, while certifications and compliance checks sit downstream of both.

Fabrication lead time is the binding constraint: custom kiosk enclosure fabrication runs from engineering review to mass production as one continuous pipeline, so a late dimension change lands mid-stream rather than at the front (^[2]).
Compliance points are checked against the drawing, not the intention, so an unfrozen datum origin invalidates earlier review work.
The peripheral list is the slowest item to finalise because payment direction often follows a commercial decision rather than an engineering one.

Treat the widely repeated claim that the compact transactional format is a 2026 default as vendor-sourced and undated. It is useful directional context for timing, but it should inform the lock decision, not set it.

Freeze/Provisional Matrix: Which Kiosk Cabinet Dimensions to Commit

The table below is the answer asset. Each row carries the dimension, why it lands in that column, and what it costs when it moves late.

Freeze at platform commit	Why it is freezeable	Cost of getting it wrong
Overall footprint and aisle clearance	Drives tooling, floor layout and approach space	Re-tooling or a site re-plan; unit will not fit the assigned bay
Screen centre height and rake	Sets reach, glare and sightline; referenced by compliance	Screen repositioning means new front panel and re-approval
Counter lip and overhang	Affects ADA approach and structural stiffness	Lip change cascades into the front assembly and finish
Service-panel swing arc	Determines clear floor space around the unit	Panel fouls walls, adjacent fixtures or access routes
ADA reach zone	Constrains screen, module and control positions together	Non-compliant deployment where ADA applies; retrofit is major
Floor or wall anchor points	Fixed by site and structural loading path	Anchors cannot be relocated without site work
Cutout datum origin	Every cutout is dimensioned from it	One datum shift invalidates the whole drawing set

Keep provisional until module selection closes	Why it is provisional	Cost of getting it wrong
Internal bay depth	Sized to the deepest module combination, not one module	Slightly over-deep or under-deep bay; often absorbed by a sled change
Module sled pitch	Standardised mounting pattern within a declared tolerance	A sled redesign, not a cabinet redesign, when kept in envelope
Gland and cable-entry positions	Follow the harness and module count	Re-drill or a grommet change; low cost inside the declared envelope
Vent field extent	Scales with heat load, which tracks the module list	Additional perforation or louvre area; thermal re-check
Cash canister envelope	Only exists if the cash path is selected	Adding cash late forces service-access and anchor re-checks

Interpreting the matrix: the enclosure-level kiosk enclosure design dimensions in the left column are the ones quoted to a fabricator, tested for access and reviewed for compliance, so they carry multi-party dependencies that a module swap cannot absorb. The right column exists so the peripheral list has room to move without triggering a drawing revision. Where ADA applies, confirm reach range and approach clearance against the current adopted standard and the jurisdiction’s adopted edition — not against this article.

Why Cutout Accuracy Is the Dimension You Cannot Retrofit

A screen bezel or exposed module opening that misses its nominal position by a millimetre or two can block installation entirely or leave a visible gap that fails appearance inspection across a production batch. Cutout tolerance is not a fabricator preference; it is set by the module supplier’s bezel drawing, so it should be confirmed with the module vendor before the enclosure drawing is released (^[1]).

Datum-referenced cutouts are dimensioned from one declared origin, so tolerance stacks predictably across the panel.
Hand-measured cutouts inherit the measurement error of the sample unit and multiply it across a batch.
Panel gauge and material choice affect how much the cutout edge distorts during forming and finishing.
An oversized cutout can sometimes be recovered with a trim ring; an undersized one usually cannot.

ADA Reach Range: A Dimensional Rule That Shapes the Whole Cabinet

Whether a kiosk enclosure must be ADA compliant depends on jurisdiction, application and funding. It is not a universal requirement. But where accessibility rules apply, reach range and approach clearance constrain screen height, module positions and footprint — which is exactly why they belong in the freeze column rather than being resolved at the module stage.

Enclosure-level implications to carry into the freeze review:

Screen centre height and tilt are constrained by the reach range, not by ergonomics alone.
Card reader, PIN pad and receipt access points must sit inside the same reach zone as the primary interface.
Approach clearance sets a minimum clear floor area in front of the unit, which feeds the footprint decision.
Where reach and approach requirements apply, payment integration work has to account for accessible interfaces and adjustable kiosk heights (^[4]).

Any ADA geometry must be confirmed against the current adopted standard. Structural material selection follows the governing ASTM specifications — cold-rolled carbon steel sheet, stainless sheet and plate, hot-dip galvanized sheet and aluminum sheet and plate — which is a reference detail, not a substitute for a compliance review.

Cash-Accepting vs Cashless Hardware and What Each Does to the Cabinet

	Cash-accepting	Cashless	Implication for the freeze
Payment methods	Banknotes, coins, cards, NFC, QR	EMV chip/contactless, NFC, QR, mobile wallets	Both need a reachable, datum-referenced cutout
Core modules	Bill validator, coin acceptor, recycler, cashbox, audit module	EMV reader, NFC antenna, QR scanner, PIN pad, gateway	Cash path adds mass and module count
Hardware complexity	High — mechanical plus electronic	Low to medium — mostly electronic	Complexity drives service-access design
Common failure categories	Bill and coin jams, worn rollers, sensor contamination	Card reader and connectivity faults	Failure mode decides access frequency
Maintenance cost direction	Vendor estimate of $3,000+ annually for cash handling	Vendor estimate typically under $1,000 annually	Service-panel swing arc becomes critical

Maintenance figures come from a public vendor comparison page and are vendor estimates, not audited benchmarks (^[3]). The decisive point for this article is narrower: a cash path adds mass, envelope and service-access requirements that touch freeze-column dimensions, while a cashless path mostly touches provisional ones. Payment direction is one of the few module decisions that can force a freeze revision — which is why it should be settled as early as the footprint.

Change-Control Rules for Module Swaps After the Freeze

Paste these into your internal change-control document and name an owner for each.

Any change touching a freeze-column dimension requires a documented revision and re-issue of the enclosure drawing. Without re-issue, downstream compliance and tooling reviews are reviewing an obsolete document.
Provisional dimensions may change inside the declared envelope without approval. The envelope exists precisely so the peripheral list can move without a full review cycle.
A new module weight or heat load triggers a re-check of structure and vent field. Mass and thermal load sit outside the dimensional envelope the structure was sized against.
Adding a cash module triggers a service-access and anchor re-check. Cash hardware adds envelope, mass and access frequency that the original layout may not have anticipated.
A change to module sled pitch beyond the declared tolerance escalates to freeze revision. Past that tolerance the cabinet, not the sled, is the thing that has to change.
Every change carries a date and a named owner. A change log without ownership is the most common reason a freeze quietly erodes.

A custom kiosk enclosure fabrication OEM partner should accept these rules as the basis of the drawing revision process from engineering review onward.

Frequently Asked Questions

What is a kiosk enclosure?

A kiosk enclosure is the fabricated structure that houses the touchscreen, computer and payment or dispensing modules, and places them where users can reach them. It is not a standard sheet metal cabinet: panel gauge, dimensional layout, venting, ingress protection and finish are all chosen around public use and heat-generating electronics.

Can payment modules be upgraded without replacing the kiosk?

Usually yes, if the enclosure was designed for it. Modular architecture exists so a payment bracket can be replaced without replacing the display unit, and a cashless kiosk can add a cash acceptor later. That works only when the cabinet has the internal envelope and service access to accept the new module.

What materials are used for kiosk enclosures?

Cold-rolled carbon steel, stainless steel and aluminum sheet are the common options, with galvanized sheet for corrosion exposure. Consult mill data sheets and the governing ASTM specifications — ASTM A1008, A240, A653 and B209 — for mechanical and chemical properties before fixing sheet metal kiosk cabinet design details.

How accurate do screen and module cutouts need to be?

Accurate to the module supplier’s bezel drawing, dimensioned from a single declared datum, and confirmed with the vendor before the enclosure drawing is released. Small misses can block installation or leave visible gaps; undersized cutouts are much harder to recover on site than oversized ones.

Next step: before you release the platform drawing, run the freeze/provisional matrix against your current peripheral list and resolve the payment direction. If the module list is still moving, work through the compact vs large tablet form-factor lock and the ODM planning approach for fixed-mount terminals so the enclosure envelope is sized against a declared module count rather than an assumed one.

Content reviewed: 2026-09-15.

Evidence confidence

Confidence: Medium. This rating reflects cross-checking 4 sources across 3 independent domains. It measures evidence coverage, not certainty; verify safety-critical work against manufacturer instructions and local requirements.
